French Fries Processing Making Pringle Potato Chips Frying Machine

FOB Reference Price:Get Latest Price
$20,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TN-PL
Machinery Capacity:
customized
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 20 25 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
TUNE
Place of Origin:
Shandong, China
Voltage:
220V/380V
Power(W):
240KW
Dimension(L*W*H):
5500*2000*2000mm
Weight:
1500Kg
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Application fields:
Commercial catering, Dairy products factory, Snack food factory, Frozen food Factory, French Fries Processing Making
Machinery Function:
making French Fries/Potato Chips
Raw material:
Potato
Output product name:
French Fries/Potato Chips
Material:
304 Stainless Steel
Dry material:
content≥20%
Sugar:
content≤0.4%
Length:
≥68mm
Dimensions:
5500*2000*2000mm
Output capacity:
300Kg/h
Heating method:
electric
Accessory:
oil tank and extra oil
Ecport country:
UK, USA, New Zealand, Australia, India, Thailand, Russia
Supply Ability
Supply Ability:
50 Set/Sets per Month Frozen French Fries Processing Line
Packaging & Delivery
Packaging Details
Stretch Film put in the container ;
India frozen french fries production line machine/french fries machinery
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 20 25 30 To be negotiated
Product Description



Potato requirement

Oval in shape Dry material content≥20% Sugar content≤0.4%;

Length ≥68mm Color outside is yellow Color inside is white

Less and small bud hole

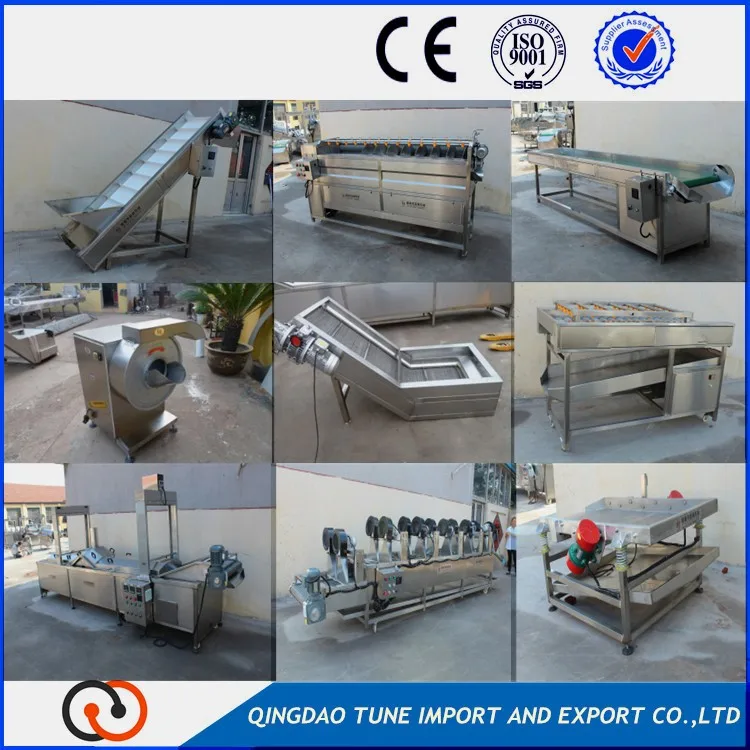

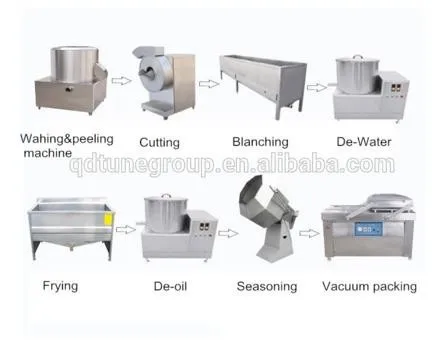

Equipment and components

1. Hoister with water spray

It is used to preclean potato,soften the potato skin, then hoist potatoes into washing and peeling machine.

2. Washing and peeling machine

This machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely.

3. Inspecting table

This machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.

4. Hoister with water spray

This machine is used to preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine.

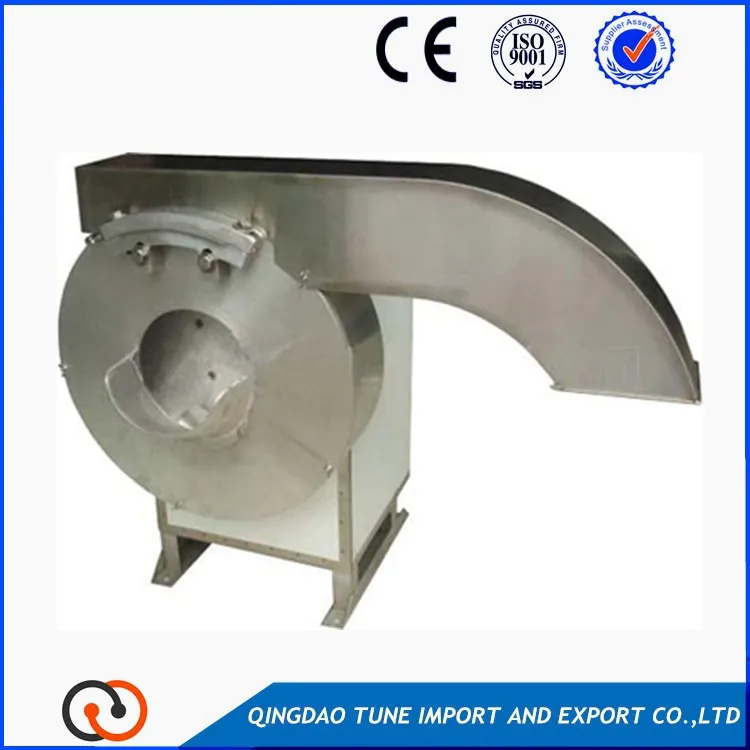

5. Potato cutter

This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important.

6. Rinsing machine

This machine used to washing potato starch and protect potato from oxidation, keep its original color.

7. Blanching machine

This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the reducing sugar, also after blanching,it will get inner soft taste of french fries.

8. Vibrating machine to de-water

Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.

9. Electric dryer:


Remove water, drying fries

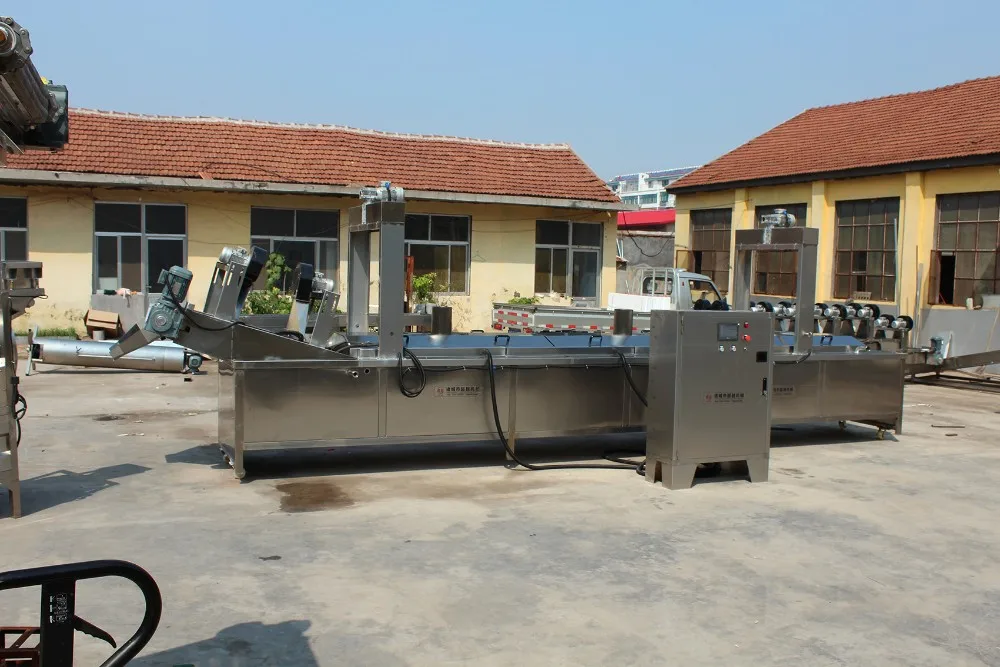

10. Continuous frying machine

This machine is used to unified fry sticks in short time.

11. Vibrating de-oil machine:


This machine is used to de-oil with the vibrating.

12. Cooling line:Use fan to blow off the water on stick surface, then deliver sticks into the freezer.

13. Conveyor :Used between cooling line and quick-freezing machine.

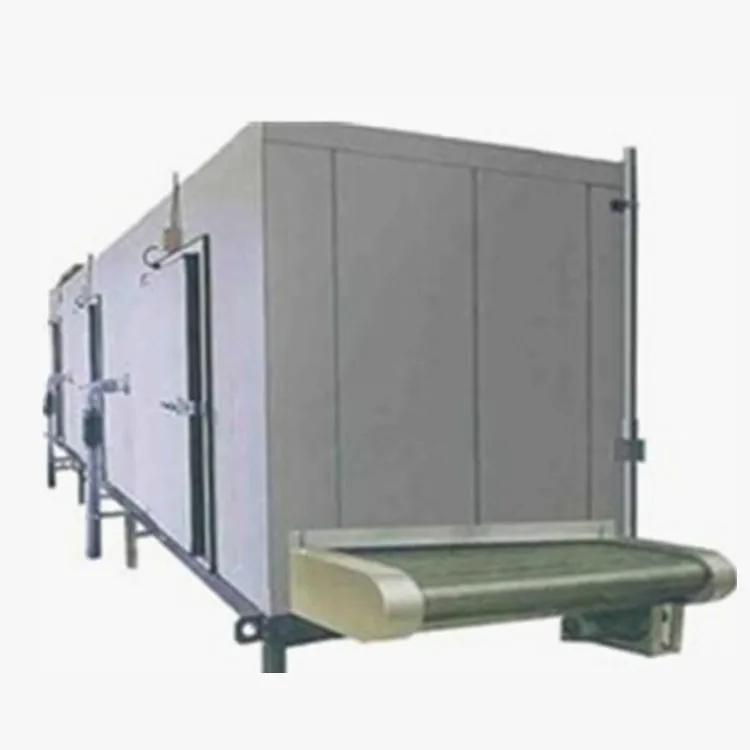

14. Fluidized-type freezer

It is used to quick freezing the french fries in short time, fries center temperature at -18 ℃, Can the maximum keep the original flavor and product quality.

15. Conveyor:Used between quick-freezing machine and packing machine.

16. Automatic weighing and packing machine

It is used to pack the french fries automatically, including bucket Elevator.

Related Products
Our Service


Every clients care about the after-sell service, so we are:

1/ The Machine gets one year warranty period.

2/ During the time ,if the machine get in trouble we will guide you to deal with the problem .

if it still don't work we will send our engineer to serve you until the problem be done. And we will pay the fly ticket .Notice that if you just need the spare part to instead the broken one after we found the cause , we will send you that free.That is our words . And we are looking for a good distributor in your country ,so the problems above they will be solved more timely .And we hope after tested the machine here could take a good business cooperation.

Wholesaler & Distributor

If you have interesting on us. if you want became ours wholesaler or distributor on your place ,we are very willing to share profits together with you.



You will get

1/ VIP W/D price available

2/ New products update at first time

3/ 2 years free spare parts available

4/ quickly delivery

5/ free technical engineer door to door service.

Customer reference

Trade Assurance

 We're so glad to inform you that we have Trade Assurance amount of $105,000USD which granted by Aliababa.com.It means you will get 100% payment refund up to Trade Assurance Amount.if we can't meet agreed delivery and quality terms contained in the contract. It is a free service for both of us.

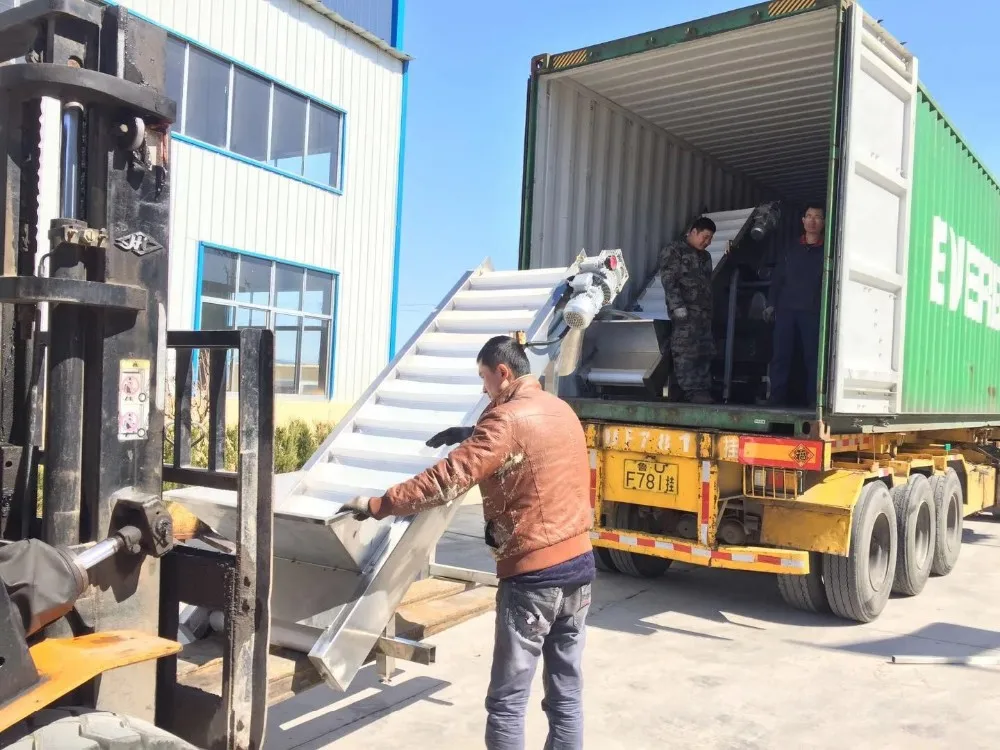

Packing & Delivery
Our Company
FAQ

1. Are you manufacturer ?

Yes we are the manufacturer and welcome to visit our factory.


2. Can you change the machine voltage as our request?

Yes we can change the machine voltage as customers' request


3. How about your after-sale service?


Our engineer can go outside to installand train your workers to operate the full machine line.


4. Warranty time of your machine?

1 years warranty time except for consumable spare parts.



5. How about delivery time of your machine?

Generally it needs 10-15 days,for big machine or producing line,it will be much longer but wthin our negotiated delivery time.
